Auditing and Security

Introduction

This tenth and last module will cover:

  1. Overview
  2. Secret Server Reporting
  3. Event Subscriptions and Event Pipeline
  4. SIEM integration
  5. Privileged Behavior Analytics (PBA)
  6. Session Recording and Monitoring

Auditing and Security Overview

In this module we will explore a range of auditing and security functionality within Secret Server. This area is of particular importance as most Delinea Secret Server customers use this functionality to ensure they adhere to various internal and external compliance regulations.

Secret Server Reporting

Secret Server provides a comprehensive range of audit reports out of the box. The available reports are designed to help users answer questions about secrets, users, compliance and administrative behaviour.

To view reports, select the Reports button from the left-hand column. On the reporting page there are three tabs, General, Security Hardening, User Audit.

  • General – Contains a range of reports separated into different areas such as Activity, Secrets, Password compliance etc.
  • Security Hardening – Contains the security hardening report which we have previously used to identify and configure security configuration to harden the Secret Server installation
  • User Audit – Contains a report to monitor specific user activity and expire and secrets a targeted user has interacted with.
  • Schedules - Show scheduled reports

Although the out of the box reports provide most customers with all the visibility and intelligence they typically need, it is possible to create custom reports within the Secret Server interface. In the next lab exercise we will configure a custom report.

Lab 25 – Configuring a Custom Report

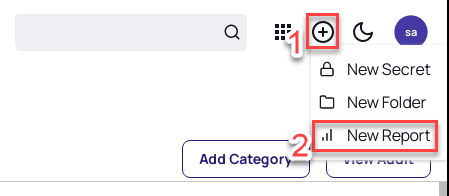

  1. Click the + icon in the top right-hand corner and click New Report

  2. Configure the report with the following detail:

    • Name: Remote Sessions – Start and End date

    • Description: Shows the start and end date detail of all remote sessions launched from Secret Server

    • Category: User

    • Page Size: 15

    • Use Database Paging: Checked

    • Chart Type: None

    • Report SQL: Paste the following

    SELECT
    a.DateRecorded AS [Date Recorded],
    upn.displayname AS [Username],
    ISNULL(f.FolderPath, N'No folder assigned') as [Folder Path],
    s.secretname AS [Secret Name],
    a.Action,
    a.Notes,
    a.ipaddress As [IP Address]
FROM tbAuditSecret a WITH (NOLOCK)
INNER JOIN tbUser u WITH (NOLOCK)
    ON u.UserId = a.UserId
INNER JOIN vUserDisplayName upn WITH (NOLOCK)
    ON u.UserId = upn.UserId
INNER JOIN tbsecret s WITH (NOLOCK)
    ON s.SecretId = a.SecretId
LEFT JOIN tbFolder f WITH (NOLOCK)
    ON s.FolderId = f.FolderId
Where
a.action like '%Launch'

  3. Click Save

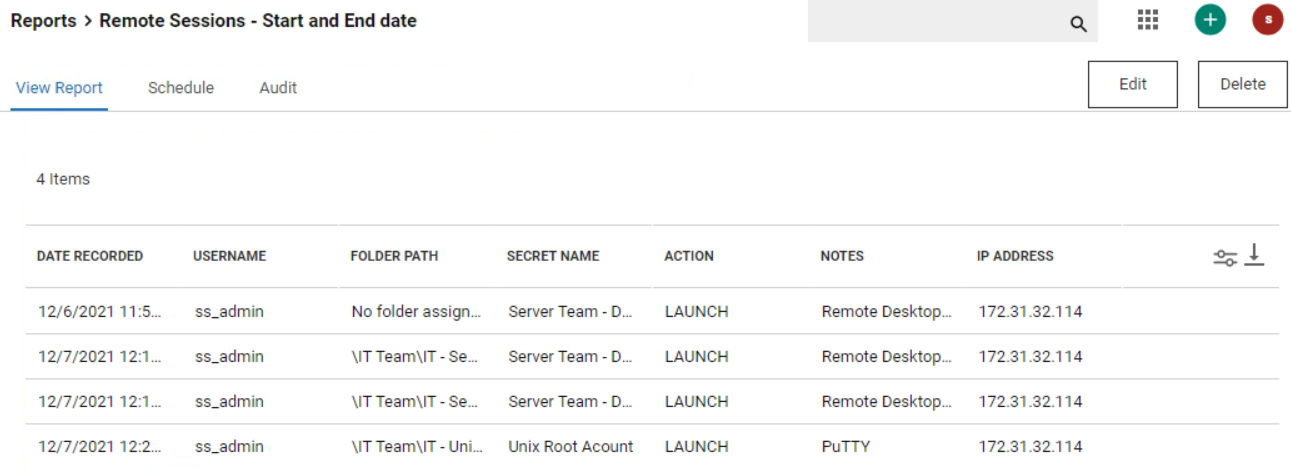

  4. If you ran all steps from all the earlier labs, sessions have been launched that match the criteria and should now be shown in the custom report

Event Subscriptions

Secret Server can be configured to generate an Event Subscription or alert for virtually any action that is carried out within the system. This functionality means that whenever a particular action is performed, a defined list of users (or email distribution groups) can be notified automatically

Warning

Delinea recommends using Event Subscriptions sparingly, if users are bombarded with too many alerts they can quickly be perceived as spam and loose importance.

Lab 26 – Configuring an Event Subscription

In this exercise we will configure an event subscription that will alert specific users if any secret in the IT – Server Team folder is edited.

Note

The training lab does not currently contain an SMTP server so this event subscription can be configured but will not generate any email alerts.

  1. Navigate to the Administration > Actions > Event Subscriptions

  2. Click Create Event Subscription

  3. Create a new subscription with the following configuration.

    • Event Subscription Name: Server Team – Edited Secrets
    • Send Email: Unchecked (can not be changed due to missing configuration)
    • Send Slack: Unchecked (can not be changed due to missing configuration)
    • Events: Secrets > Edit > In this folder > IT - Server Team

  4. Click Add Event

  5. Your configuration should match the image below:

  6. Click Create Event Subscription

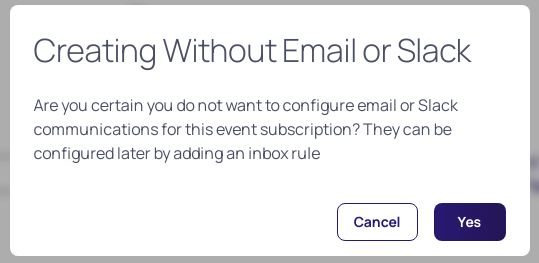

  7. In the Creating Without Email or Slack message, click Yes

  8. To test the subscription, edit a secret in the IT – Server Team folder by adding to the notes section "Test to trigger the Event Subscription".

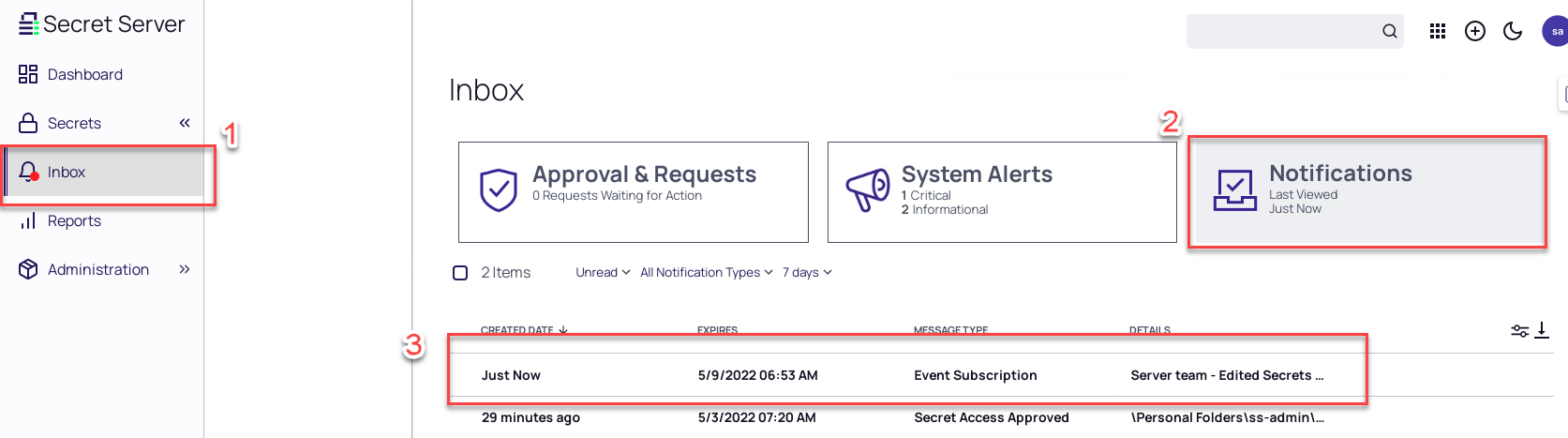

  9. The event will be visible in the Notification of the ss_admin user. Click Inbox in the navigation bar and select Notification. There you will see event.

    Note

    This due to the fact that under the just created Event Subscription, under Subscribers the ss_admin account is mentioned (the default)

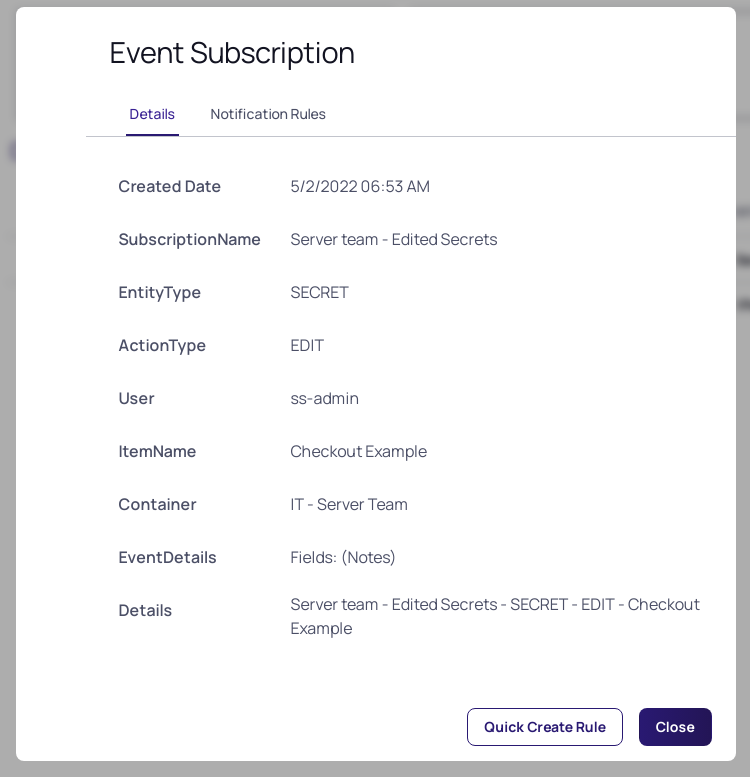

  10. Click on the Event Subscription line and see the details. You can see which field(s) has/have been changed in the EventDetails section.

  11. Click Close

Lab 27 – Configuring an Event Pipeline

In this example exercise we will send an Email to the Secret Owner on the basis of Expiry

Creating and Configuring and Event Pipeline consists of 4 basic steps – Creating the

Event Pipeline > Add Triggers > Add Filters > Choose Tasks

Step One: Create the Event Pipeline

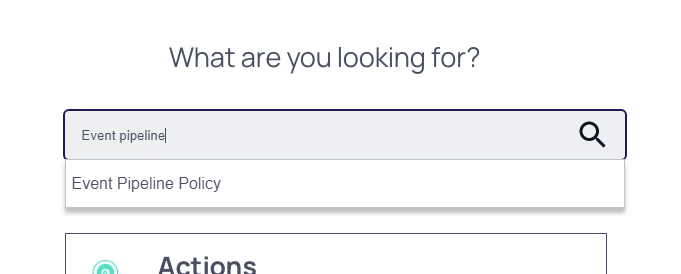

  1. Navigate to Administration > Search bar type "Event Pipeline"

  2. Click Event Pipeline policy in the search results

  3. Click the Pipelines tab. Select Add Pipeline

  4. Select Pipeline Type: Secret

  5. Click Create

  6. The Choose Triggers page appears

Step Two: Add Triggers

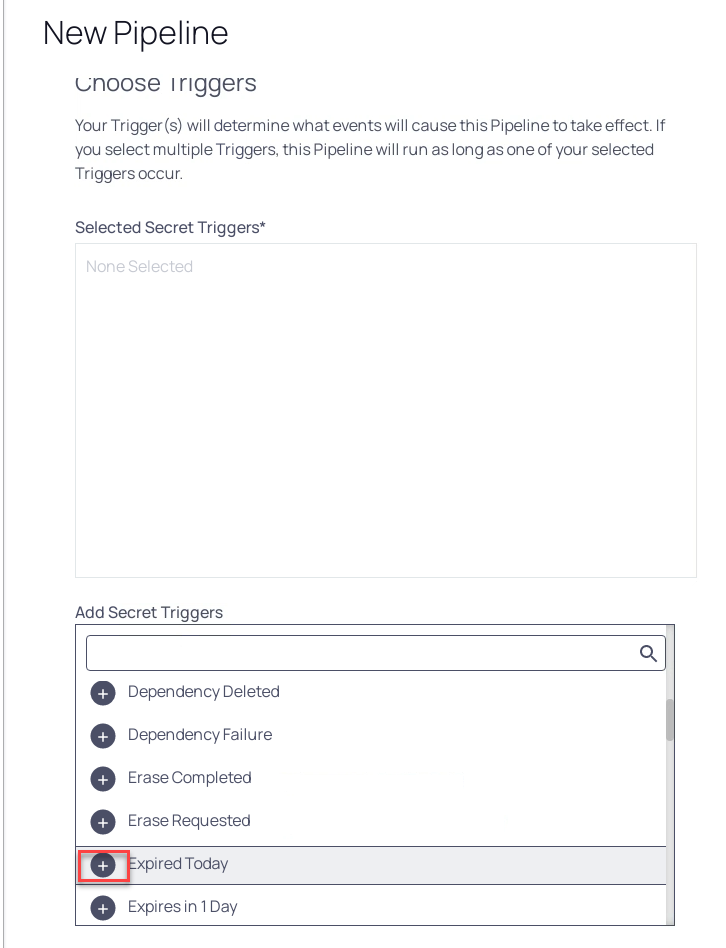

  1. In the Add Secret Triggers section, click the + in the green circle next to the Expired Today trigger.

    Note

    You can also search for a trigger by typing in the search text box. The selected triggers appear in the Selected Triggers list.)

  2. Click Next

  3. The Choose Filters page of the wizard appears.

Step Three: Add Filters

  1. Use the exact same method to Select the filter to the Event Pipeline. All filters present a popup page for you to provide additional information when you click on them.

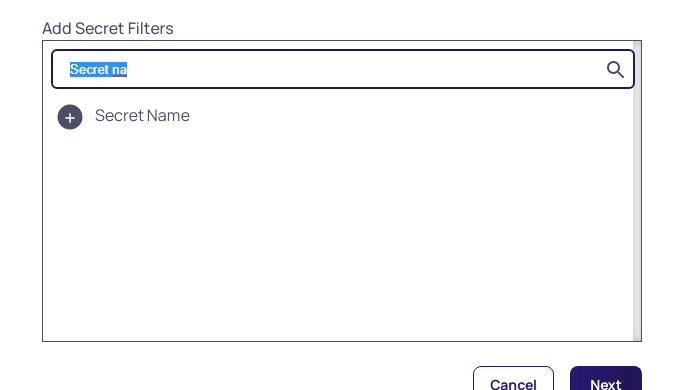

  2. Click the + in the green circle next to the Secret Name

  3. Leave Value Match type as Equals

  4. In the Value box enter the name RFA Example

  5. Click Save. The Choose Filters page of the wizard appears

  6. Click Next. The Choose Tasks page of the wizard appears

Step Four: Choose Tasks

  1. Use the exact same method to add Secret: Send Email to Owners task to the Event Pipeline. Many tasks present a popup page for you to provide additional information when you click on them.

  2. Set Secret Access Role Permission to Owner

  3. Set Subject Pattern to This Secret has now Expired

  4. Set Email Body Pattern to This Secret has now Expired

  5. Leave the High Priority unchecked

    Warning

    Tasks are very powerful and thus can be dangerous. You can alter Secret Server in dramatic, sometimes irreversible ways. We strongly recommend testing Event Pipelines in a safe sandbox environment before applying them to production Secret Server servers.

  6. Click Save. The Choose Tasks page of the wizard appears

  7. Click Next

  8. In the Pipeline Name type Event Pipeline for send email on expired secrets

  9. In the Pipeline Description type Event Pipeline for send email on expired secrets

  10. Click Save

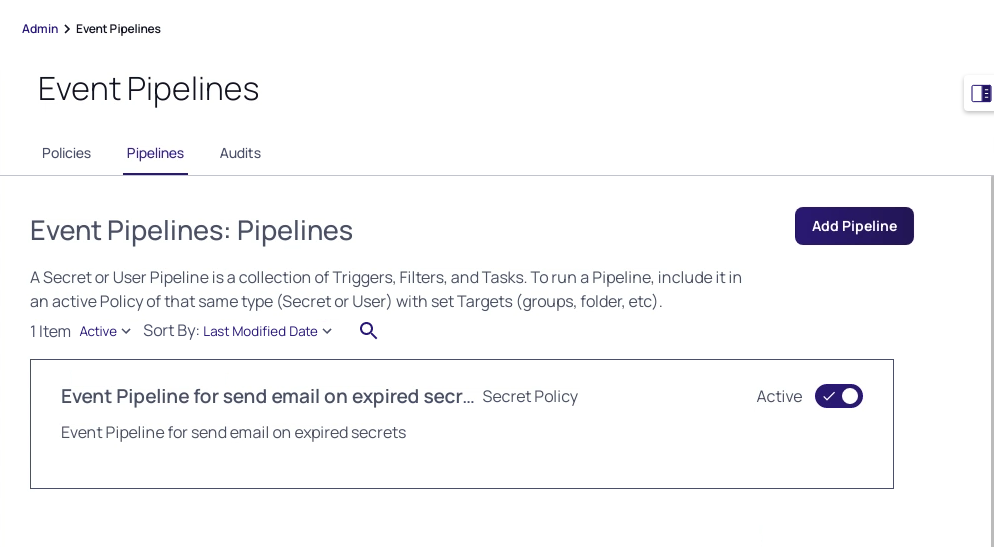

  11. You will be presented with the Event Pipelines: Pipelines and it is Active

Note

More detailed information on Event Pipelines can be found at https://docs.delinea.com/online-help/secret-server/events-and-alerts/event-pipelines/index.htm
